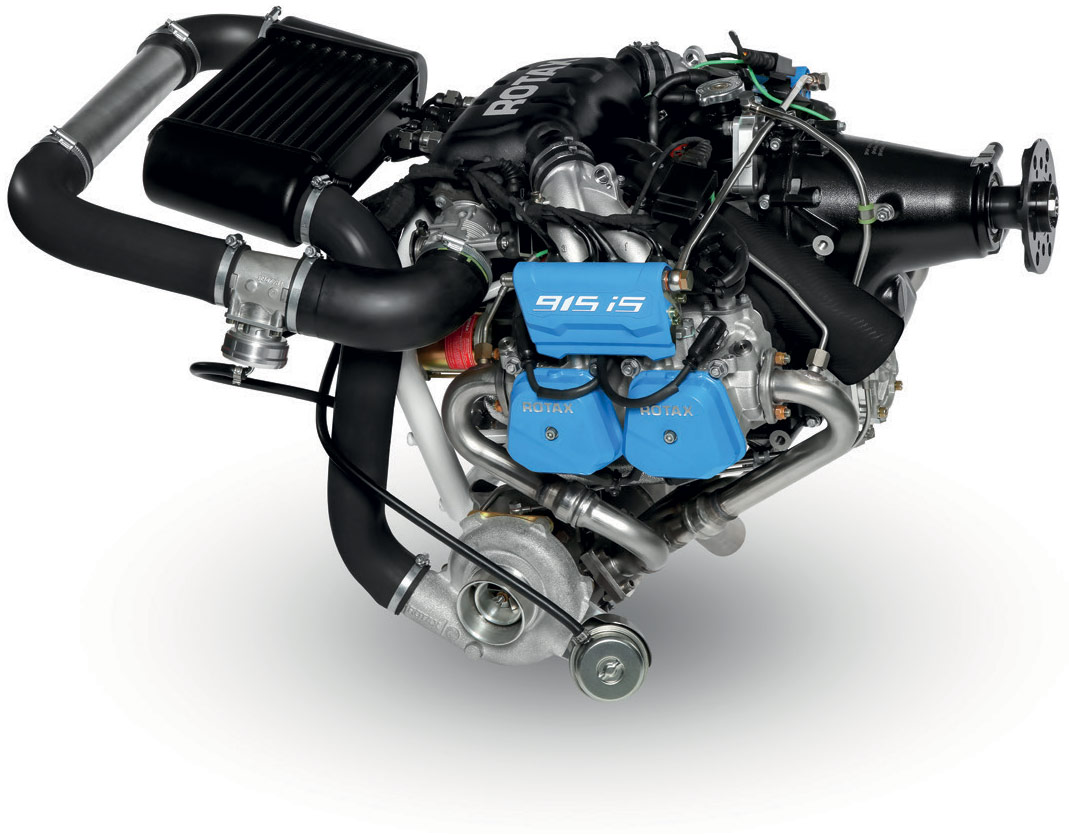

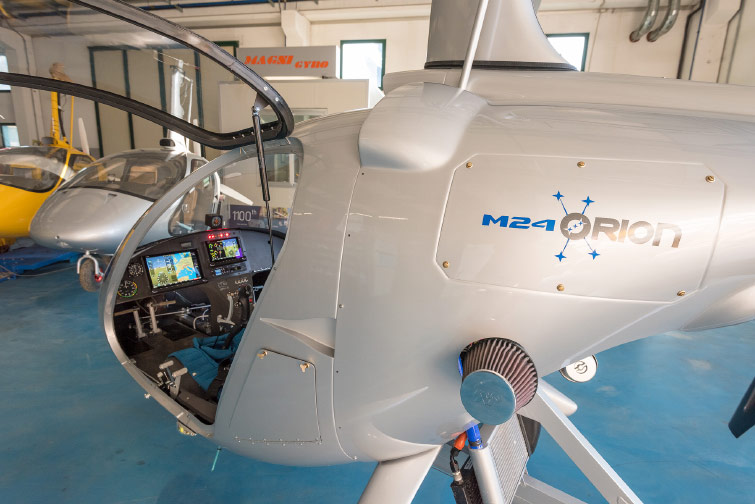

The Italian made M24 Orion Plus comes with the latest generation turbo charged, fuel injected 141HP Rotax 915 iS Turbo Engine which result in increased performance, reduced fuel consumption and a seamless and linear power delivery.
Find out more about M24 Orion here .
M24 Orion Plus includes:

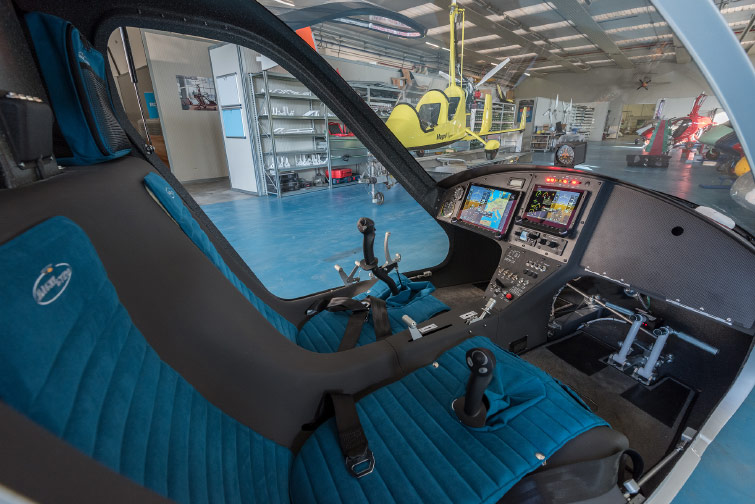

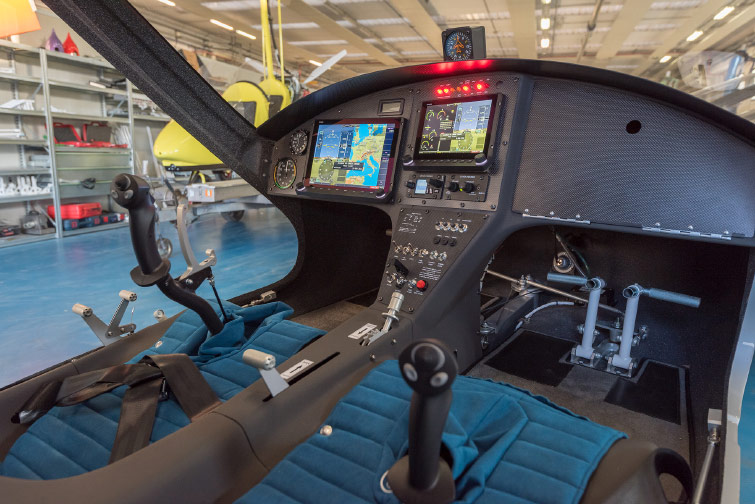

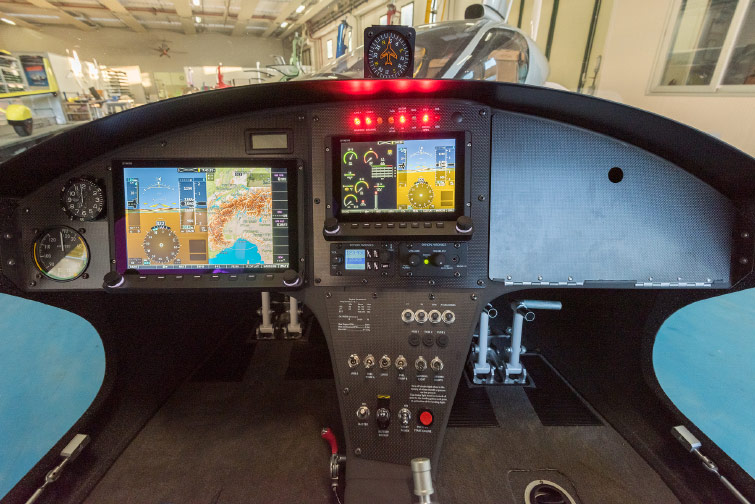

Velvet-feel Interior Finish

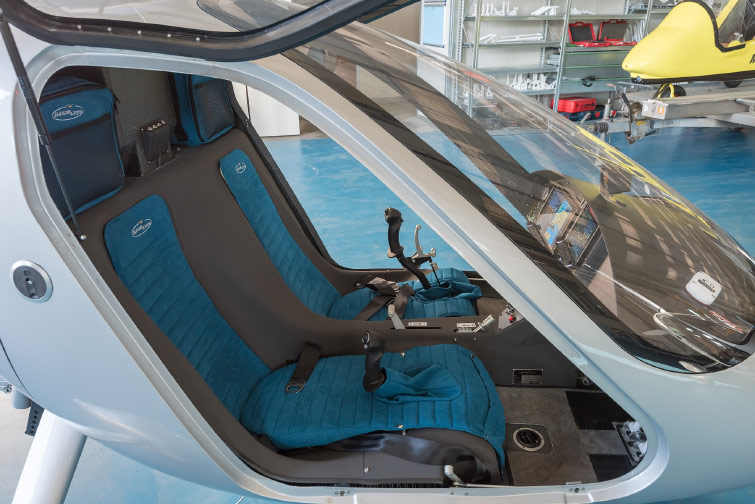

Executive Style Seats
Executive Style Carpets
Executive Throttle Grips
Heating System
Cool Air Ventilation
Spinner
Mast fairing
2 x Luxury Style Removable Storage Cases / Head restraints Enhanced Headset Brackets
Additional Headset Connectors in rear of Cabin
Other options available on request
VIDEO
VIDEO
Technical Specifications
Maximum take off weight up to 500kg
Aeronautical, technically up-to-date, top quality materials (4130 steel/Carbon fibre)
Engine
4-cylinder
4-stroke liquid/air-cooled engine with horizontally opposed cylinders
Dry sump forced lubrication with separate oil tank, automatic adjustment by hydraulic valve tappet
Redundant electronic fuel injection and ignition
Engine management system (EMS)
Electric starter (12 or 24 volt)
Propeller speed reduction gearbox
Air intake system with intercooler
Turbocharger with stainless steel exhaust
TBO (Time between overhauls) 1,200 hours
Service ceiling of 23,000 feet
Performance
Maximum Speed 100mph / 161kmh
Cruising Speed 85mph / 137kmh
Take-off Distance 75 metres
Landing Distance 0 – 30 metres
Tank Capacity 82 litres
Average range 4h
Dimensions
Rotor Diameter 28ft
Length 4.4m
Height 2.8m
Width 1.8m
